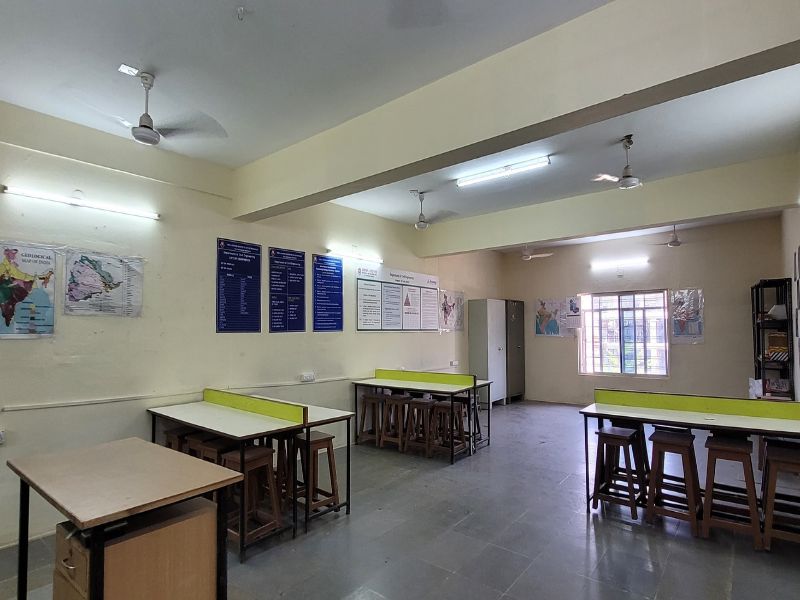

Course Outcomes

At the end of the course, the student will be able to:

1. To study the physical properties and identification of minerals referred under the theory.
2. Describe and identify the rocks referred under the theory.
3. Illustrate the Microscopic study of rocks.
4. Interpret and draw the sections for geological maps showing tilted beds, faults, unconformities etc.,
5. Solve the simple structural geological problems.

List of experiments

1. Study of physical properties and identification of minerals.
2. Study of physical properties and identification of rocks (Igneous Rocks)
3. Study of physical properties and identification of rocks (Sedimentary Rocks)
4. Study of physical properties and identification of rocks (Metamorphic Rocks)
5. Microscopic study of rocks
6. Microscopic study of Minerals
7. Study of Geological Structures like Faults and Folds
8. Study of Geological Structures like Tilted Bed models and unconformities
9. Interpretation and drawing of sections for geological maps showing tilted beds, faults, uniformities etc.
10. Calculation of Dip using strike method.
11. Calculation of Dip using dip method.
12. Calulation of Dip using different angels/inclinations.

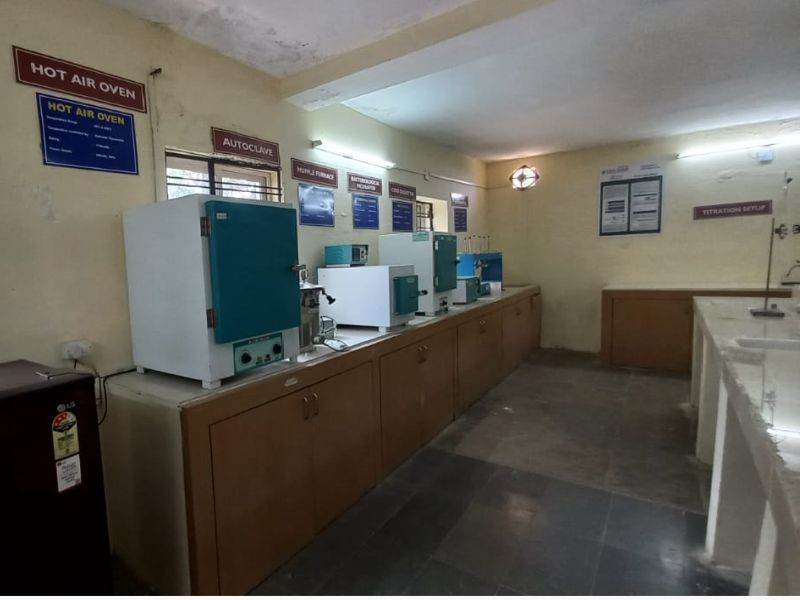

Course outcomes

After the completion of the course student should be able to

1. Understand principles and their practical application in water treatment.
2. Determine physical, chemical and biological characteristics of water and wastewater.
3. Determine the optimum dose of coagulant.
4. Estimate the chloride, nitrate and iron content in water.
5. Summarize the solutions using titration, conductivity meter, pH meter, turbidity meter and DO meter.

List of experiments

1. Determination of pH and turbidity
2. Determination of Conductivity and total dissolved solids
3. Determination of Alkalinity and Acidity
4. Determination of Chlorides
5. Determination of Iron
6. Determination of Dissolved Oxygen
7. Determination of Nitrates
8. Determination of Optimum dose of Coagulant
9. Determination of Chlorine Demand
10. Determination of B.O.D
11. Determination of C.O.D
12. Presumptive Coliform test

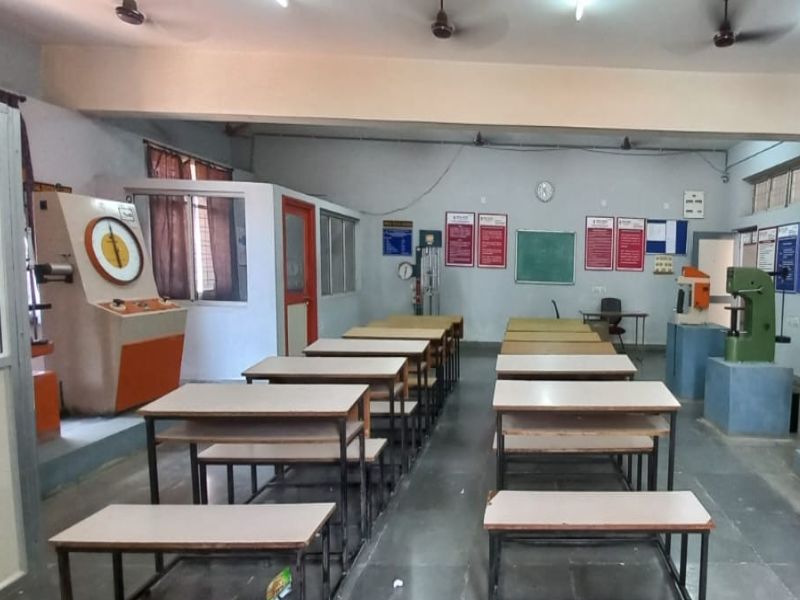

Course Outcomes

At the end of the course the student will be able to:

1. Predict the behavior of materials under impact, hardness, tensile and compressive loads.
2. Determine elastic constants by flexural and torsion test.
3. Determine the spring constants under various loadings.
4. Understand the deflection of materials under bending
5. Understand basic material properties stress and strain.

List of Experiments

1. Tension test
2. Bending test on (Steel / Wood) Cantilever beam.
3. Bending test on simple support beam.
4. Torsion test
5. Hardness test
6. Spring test
7. Compression test on wood or concrete
8. Impact test
9. Shear test
10. Verification of Maxwell’s Reciprocal theorem on beams.
11. Use of electrical resistance strain gauges
12. Continuous beam – deflection test.

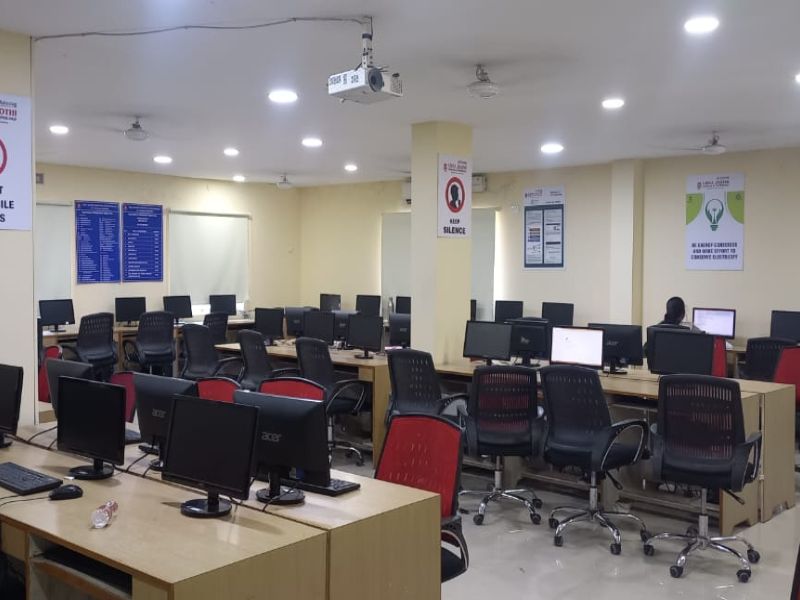

At the end of the course, the student will be able to:

1. Assess the Software with aiding source.
2. Draft the Plan and Elevation & Sectional views of the buildings.
3. Develop the components of the building.
4. Replicate the detailing of framed and Industrial structures.
5. Interpret the isometric and orthogonal projection of buildings.

List of Experiments

1. Introduction to the basic commands of CADD software.
2. Practice exercises on basic commands of CAD software.
3. Drawing of single line plans Single storey buildings.
4. Drawing of plans of Multi storied buildings with Brick thickeness (Max G+2)
5. Developing sections and elevations of Single storey buildings
6. Detailing of different types (any 2 types) of doors and its components by using CAD
7. Detailing of different types (any 2 types) of windows and its components by using CAD
8. Detailed drawing of Roof trusses by using CAD
9. Exercises on the development of working of building by using CAD
10. Planning of commercial building (School building)
11. Fundamentals of Building Information Modelling (BIM)
12. Demonstrationon workflow in using BIM in the building life cycle

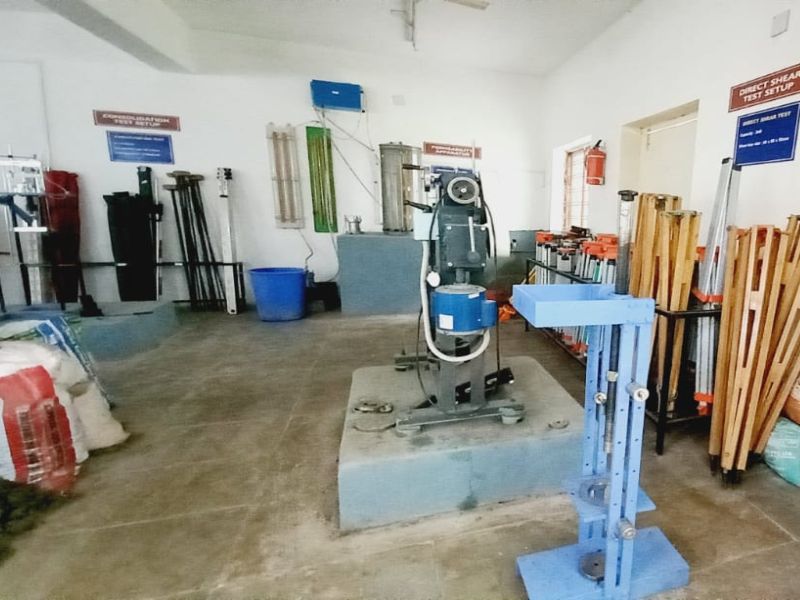

Course Outcomes

At the end of this course the student will be able to

1. Demonstrate the engineering properties the soil.
2. Illustrate the field bulk and dry density of cohesive and cohesion less soils.
3. Classify the Coarse grained soils based on sieve analysis test & a grain size distribution curve.
4. Compute the shear strength of cohesive and cohesion less soil.
5. Determine the permeability of coarse grained soil and fine grained soil by constant head permeability test and falling head method.

List of Experiments

1. Atterberg’s limits
2. Fileld density- core cutter and sand replacement method
3. Grain size analysis
4. Permeability of soil, constant head
5. Permeability of soil variable head test.
6. Compaction test
7. B.R test
8. Consolidation test
9. Unconfined compression test
10. Triaxial compression test
11. Direct shear test
12. Vane shear test.

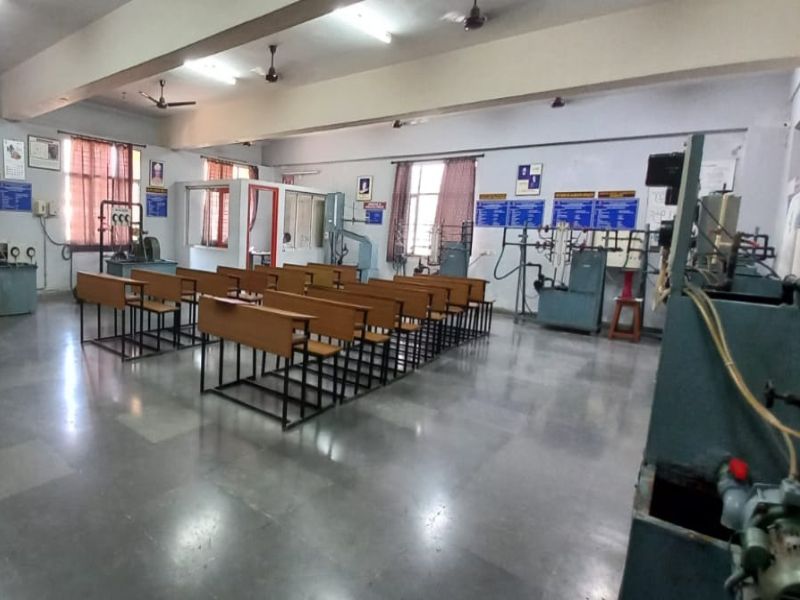

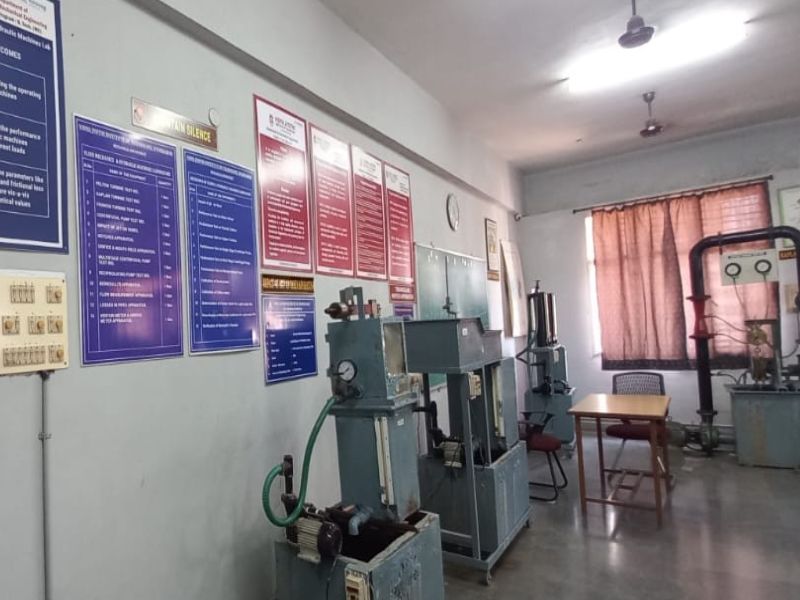

Course Outcomes

Students who successfully complete this course will have demonstrated ability to:

• Describe the basic measurement techniques of fluid mechanics and its appropriate application.
• Interpret the results obtained in the laboratory for various experiments.
• Discover the practical working of Hydraulic machines- different types of Turbines, Pumps, and other miscellaneous hydraulics machines.
• Compare the results of analytical models introduced in lecture to the actual behavior of real fluid flows and draw correct and sustainable conclusions.
• Write a technical laboratory report

  List of experiments

• Calibration of venture meter and Orifice meter
• Determination of coefficient of discharge for a small orifice/mouthpiece by constant head method
• Calibration of contracted rectangular notch and triangular notch
• Determination of friction factor of a pipe
• Determination of coefficient for minor losses.
• Verification of Bernoulli’s equation.
• Impact of jet on vanes
• Study of hydraulic jump.
• Performance test on Pelton wheel turbine.
• Performance test on Francis turbine
• Performance characteristics of a single stage /multi stage centrifugal pump.
• Performance characteristics of a reciprocating pump

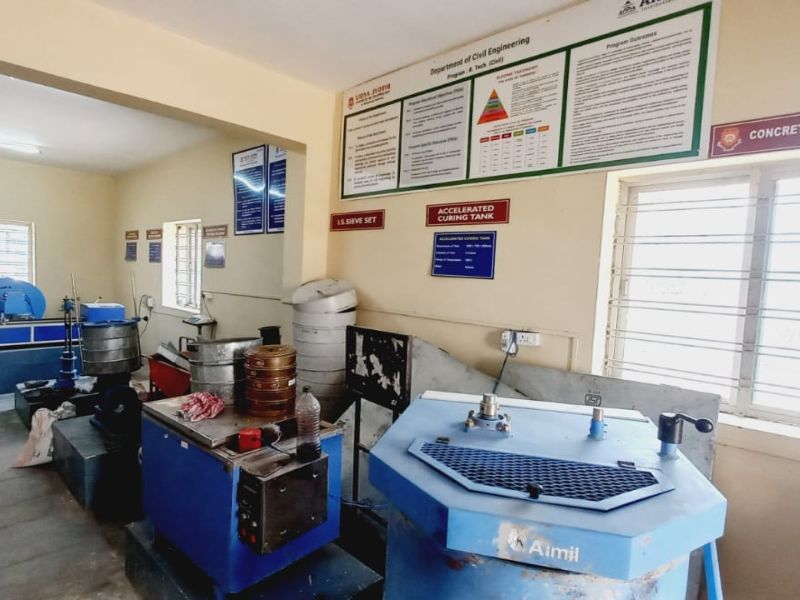

Course Outcomes

• Examine the experimental strength of aggregate materials as per codal provisions.
• Illustrate the stability & properties of bituminous materials & mixes by conducting tests.
• Determine the properties of cement by conducting the test.
• Define the workability of fresh concrete by conducting tests.
• Estimate the strength of hardened concrete by conducting destructive and non destructive testing.

LIST OF EXPERIMENTS

Road Aggregates

• Aggregate Crushing Value.
• Aggregate Impact Test.
• Specific Gravity And Water Absorption.
• Attrition Test.
• Abrasion Test.
• Shape Test.

Bituminous Materials

• Penetration Test.
• Ductility Test.
• Softening Point.
• Flash And Fire Point.

Cement and concrete

• Tests on cements
• Fineness of cement.
• Normal Consistency of cement
• Initial And Final Setting Time of cement.
• Specific Gravity and Soundness of cement.
• Compressive Strength of cement.

Tests On Concrete

• Workability Test on Concrete By Compaction Factor , Slump cone and Vee- Bee.
• Compressive Strength and Young’s Modulus of Concrete.
• Bulking of Sand.
• Non Destructive Testing on Concrete (For Demonstration).
